Vibrating screening machine for activated carbon

Vibrating screening machine for activated carbon is a device used for material separation in the production and application of activated carbon. The main function of this type of machine is to physically distinguish the activated carbon particles according to their size, so as to achieve classification, removal of non-compliant particles or separation of dust. The physical properties of activated carbon, including its particle size distribution and adsorption performance, have a direct impact on its final use. Vibrating screening machine for activated carbon includes various types, such as equipment that screens by rotation, linear or high-frequency vibration, as well as swing screens that simulate manual screening actions, and equipment that combines ultrasonic technology to improve screening effects. Each of these types has different operating mechanisms and scopes of application to meet the requirements of activated carbon treatment in different production links.

What are the types of vibrating screening machine for activated carbon?

The types of vibrating screening machine for activated carbon are usually classified according to their working principle, motion trajectory, number of layers, and special design. The following are several common types of vibrating screening machine for activated carbon:

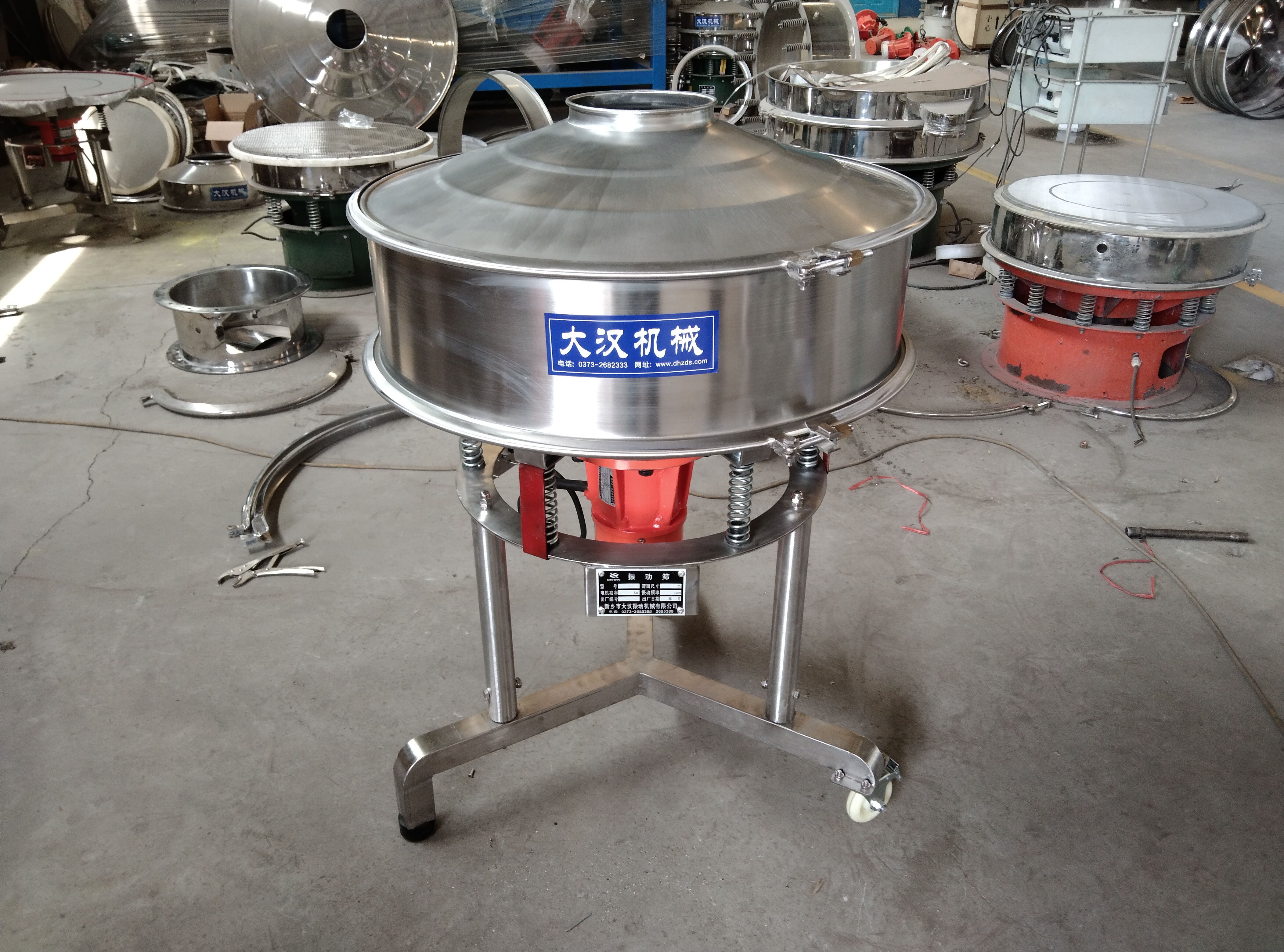

Rotary vibrating screen (three-dimensional vibrating screen)

Features: This is the most commonly used type of vibrating screening machine. Its working principle is to make the screen body produce horizontal, vertical and inclined three-dimensional motion through the vibration motor. The material moves forward in a spiral shape on the screen surface and jumps at the same time, thus realizing screening.

Advantages: high screening accuracy, multi-layer screening, one device can simultaneously select activated carbon of various particle sizes. Small footprint, compact structure, easy operation. Suitable for fine screening, impurity removal and grading of activated carbon.

Applicable scenarios: occasions with strict requirements on the size of activated carbon particles and multi-level grading, such as quality control of activated carbon finished products before leaving the factory.

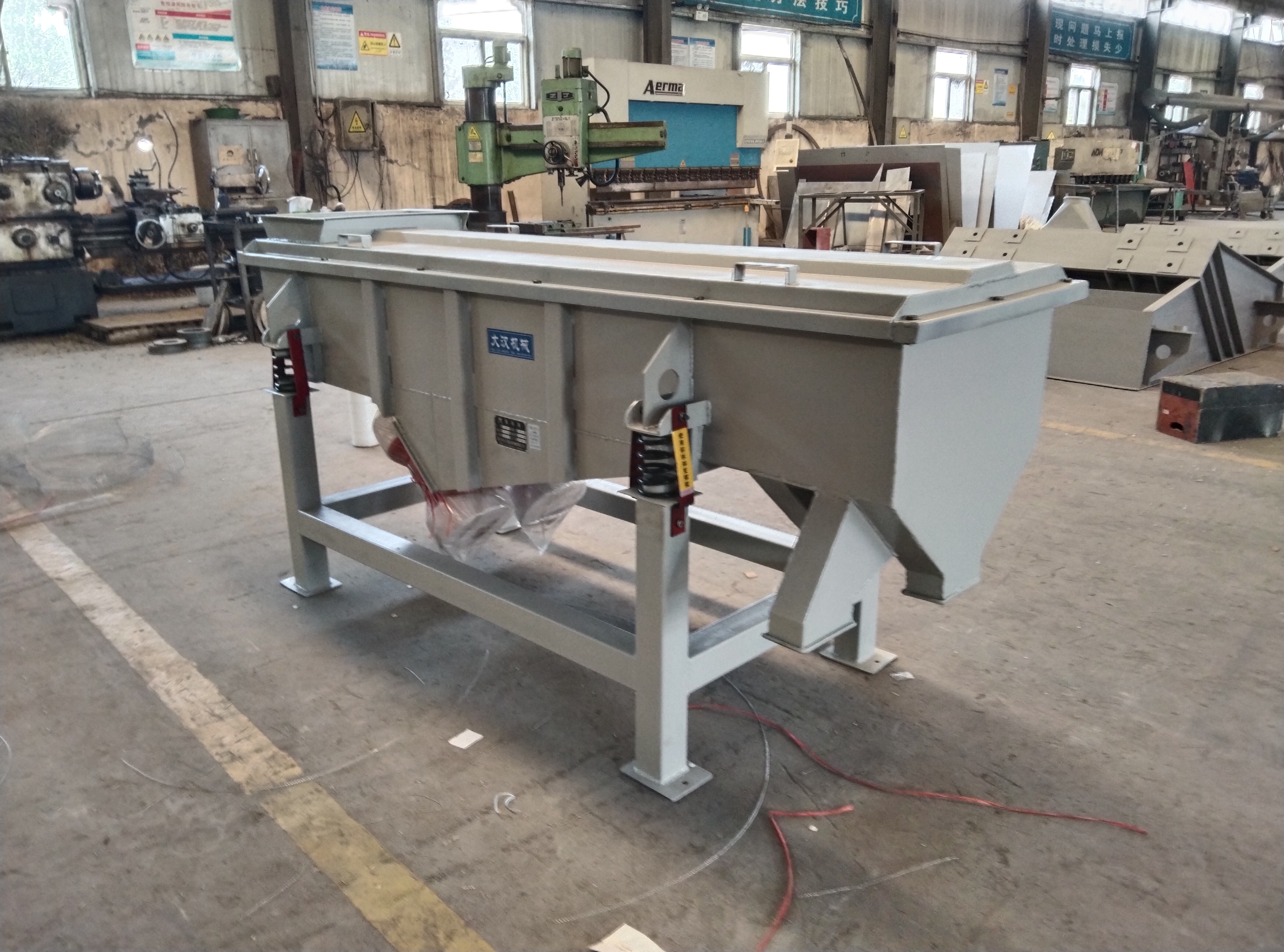

Linear vibrating screen

Features: driven by dual vibration motors, the material moves linearly on the screen surface. The screen body is usually rectangular, and the screen surface can be set at an angle.

Advantages: large processing capacity, high screening efficiency, suitable for coarse screening and impurity removal of activated carbon. Relatively simple structure, easy maintenance.

Applicable scenarios: preliminary large particle separation and impurity removal in activated carbon production line, or rapid screening of large batches of activated carbon.

High frequency vibrating screen

Features: Screening materials through high frequency and small amplitude vibration, and the vibration frequency is much higher than that of ordinary vibrating screen.

Advantages: It can effectively solve the problem of blocking the screen of fine powder materials, and is particularly suitable for the screening of fine activated carbon powder. The screening efficiency is high, and it has a good effect on fine powder and viscous materials that are difficult to screen.

Applicable scenarios: Screening of fine powder and micro powder produced in the production process of activated carbon, or occasions where fine activated carbon powder needs to be recovered in adsorption applications.

Swing screen (fine screen)

Features: Simulates manual screening action, and screens by combining low frequency, large amplitude swinging motion and jumping motion. The movement trajectory of the screen is complex, which helps the material to fully contact the screen surface.

Advantages: Extremely high screening accuracy, good particle shape retention, and not easy to damage activated carbon particles. Suitable for occasions with high requirements for activated carbon integrity and strict screening accuracy.

Applicable scenarios: Fine grading and quality control of high-end activated carbon products, and applications with strict restrictions on activated carbon breakage rate.

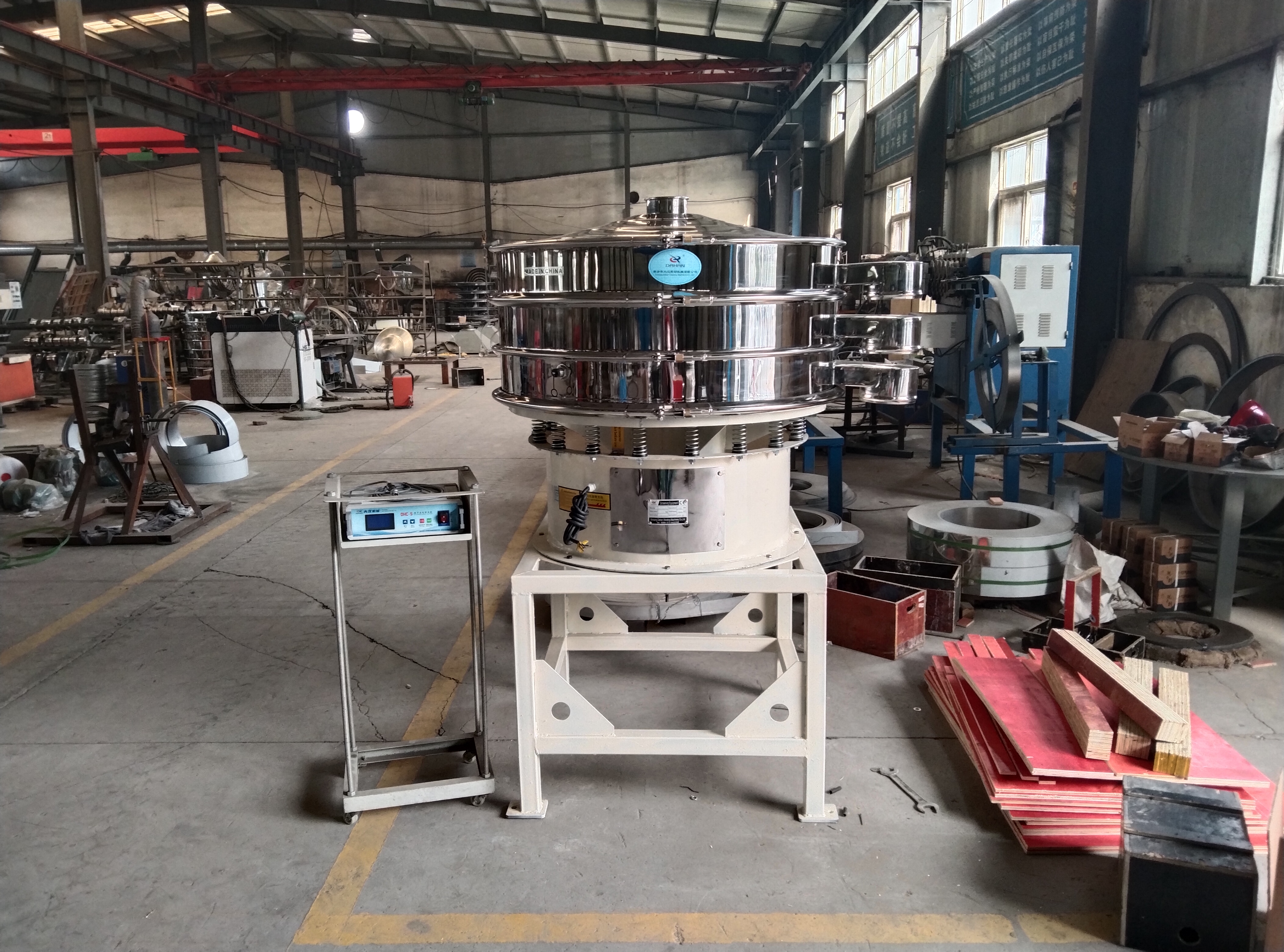

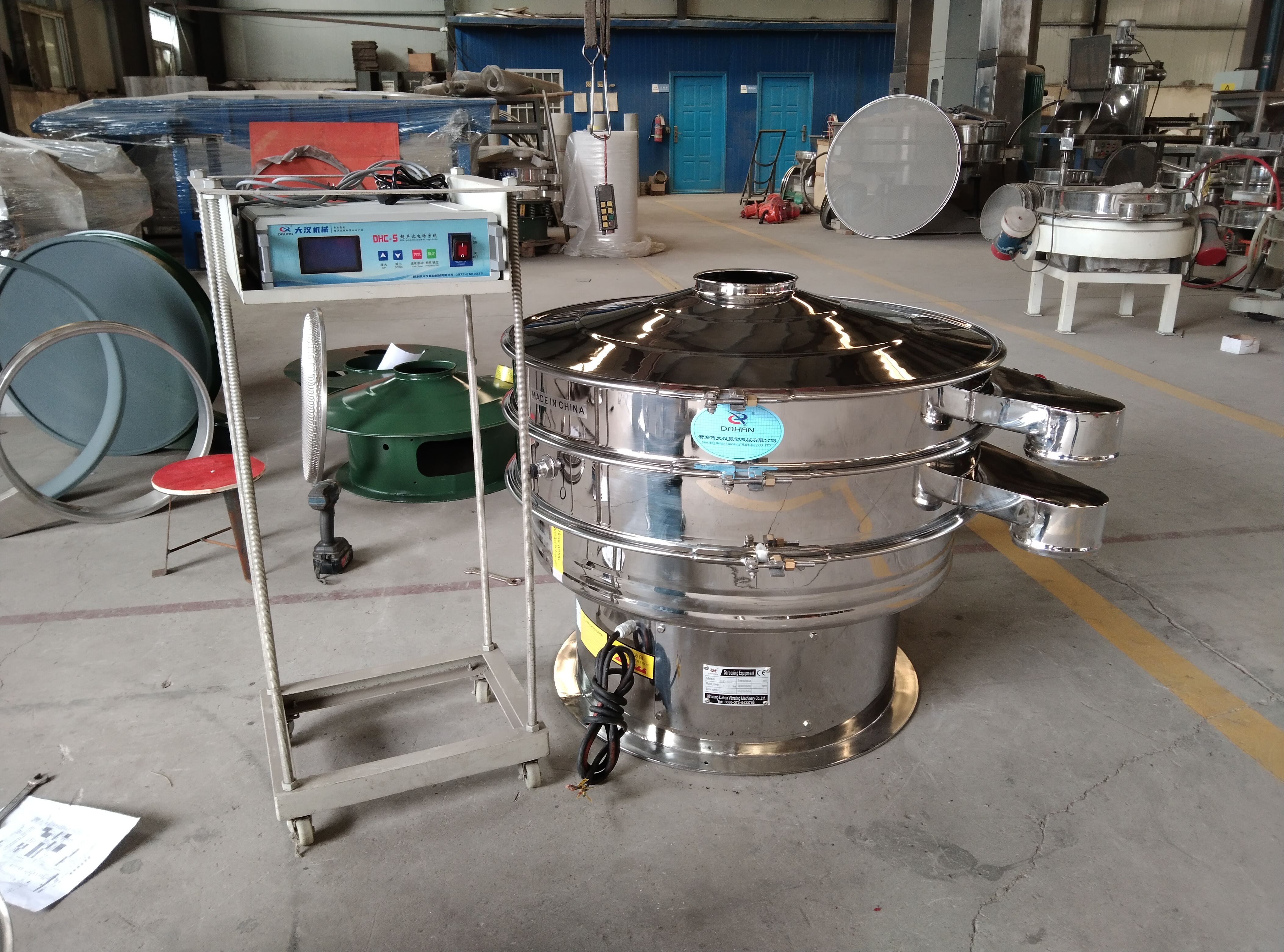

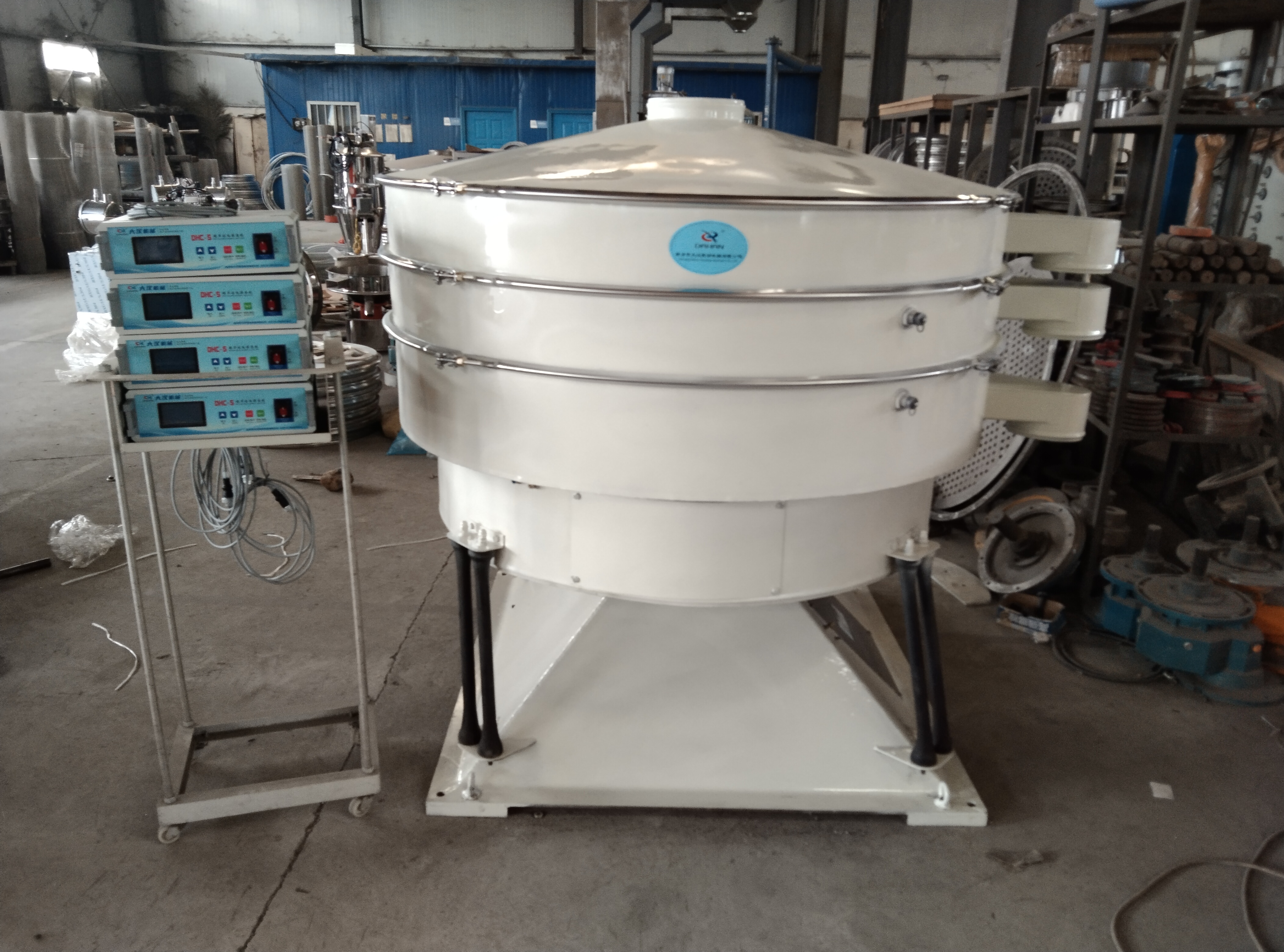

Ultrasonic vibrating screen

Features: On the basis of ordinary vibrating screen, ultrasonic transducers are installed above the screen. Through high-frequency ultrasonic vibration, ultrasonic energy is transmitted to the screen, thereby eliminating screen blockage, especially for the sticky and highly adsorbent activated carbon fine powder.

Advantages: Completely solve the problem of screen blockage, significantly improve the efficiency and accuracy of fine powder screening, and reduce production costs.

Applicable scenarios: Screening and grading of activated carbon fine powder, and screening operations where activated carbon is easy to agglomerate in a humid environment.

Vibrating screening machine for activated carbon plays an important role in the preparation and application of activated carbon. By physically screening activated carbon, activated carbon products with particle sizes that meet specific requirements can be obtained, or particles of different sizes can be separated for specific purposes. The design and operation of these devices are designed to adapt to the physical properties of activated carbon and ensure the stability and reliability of the screening process. In actual operation, selecting the appropriate type of screening machine and configuring it correctly is a task to ensure that the particle size of the activated carbon product meets the established standards.
